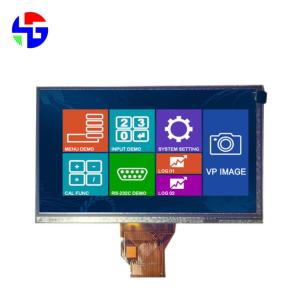

7.0-inch is an RGB interface, TFT, TN 6 0'Clock is ultra-wide view view, resolution of 800 * 480 LCD TFT Display
Product Description
7.0-inch is an RGB interface, TFT, TN 6 0'Clock, display effect is ultra-wide view view, resolution of 800 * 480 LCD TFT display, suitable for industrial meters and other related products
Product parameter details
| Model |
HG070WV037R01 |
Application industry |
Industrial instrument |
| Size |
7.0 inch |
Arrangement |
800*480 |
| Display size |
154.08mm*85.92mm |
External dimensions |
164.9mm*100mm*3.5mm |
| Viewing Angle |
TN 6 0' Clock ultra-wide view |
Luminance |
280cd/m2(customizable) |
| Contrast ratio |
500 |
NTSC |
45% |
| Signal types |
RGB Interface 50PIN |
| Temperature |
Operating temperature in: -20℃ ~70℃, storage temperature: -30℃ ~80℃ |
|
Remark
|
The standard series display effect is an ultra-wide perspective LCD TFT display |
Description of products
HG070WV037R01 is a projective row color active matrix LCD screen
It is composed of TFT LCD panel, driver IC, FPC, backlight source and RTP
It is a standard series of 800*480 resolution display effect for ultra-wide viewing Angle LCD TFT display
Using RGB-24 channel interface 50PIN, can work in -20℃~70℃, storage temperature: -30℃~80℃
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendation
Packaging and transportation
Packaging details:
1.All products are packaged correctly to ensure safety.
2.For small-size products, we use the tray = carton.
3.For larger sizes, we use knife cards + foam + cartons.0
4. We can also design packaging according to customer requirements.
Transport
1. Through express delivery (3-7 working days),
2. Marine transportation (15-30 days), suitable for conventional mass production.
3. Air transport (4-5 days), from airport to airport.
Product Tags:
|
|
RGB Interface 7.0 Inch TFT Display TN 6 0'Clock Ultra Wide View 800x480 280cd/m2 Images
|
