Product description

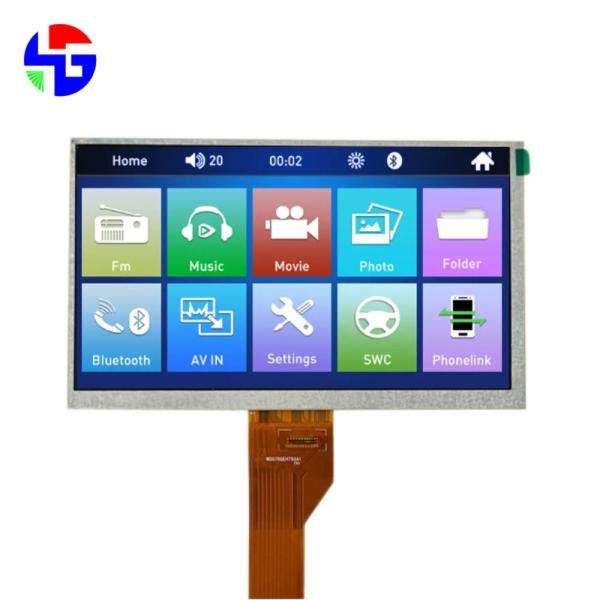

10.1-inch LVDS interface, TFT, TN 6 O'clock perspective, display effect is ultra-wide view, and the resolution is 1024 * 600 Auto TFT display , which is suitable for the Auto and other related industrial control products
Product parameter details
| Model | HG101WS040 | Application industry | vehicle-mounted |
| Size | 10.1 inch | Arrangement | 1024*600 |
| Display size | 222.72mm*125.28mm | External dimensions | 235mm*143mm*2.9mm |
| Viewing Angle | TN 6 0' clock ultra wide view | Luminance | 230cd/m2(customizable) |
| Contrast ratio | 500 | NTSC | 50% |
| Signal types | LVDS interface 40PIN |
| Temperature | Operating temperature: -20℃ ~60℃ for operation, storage temperature: -30℃ ~70℃ |
| Remark: | LVDS, 40PIN standard interface |
Description of products
HG101WS040 is a projective row color active matrix LCD screen
It is composed of TFT LCD panel, driver IC, FPC and back light source, which has a hole in the back of the backlight
It is 1024*600 resolution, display effect for ultra wide view of the Auto TFT display
Using LVDS-4 channel interface 40PIN can work at -20℃~60℃, storage temperature: -30℃~70℃
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized to your requirements (can be customized backlight, FPC, touch screen, industrial drive board
Comply with RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendation
Packing and Shipping
Packing Details:
1. All products are packed in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design packing according to customer's requirement.
transport
1. By express delivery (3-7 working days), applicable to emergency time and small amounts.
2. Sea transportation (15-30 days), suitable for conventional mass production.
3. Airfreight (4-5 days), from airport to airport.
